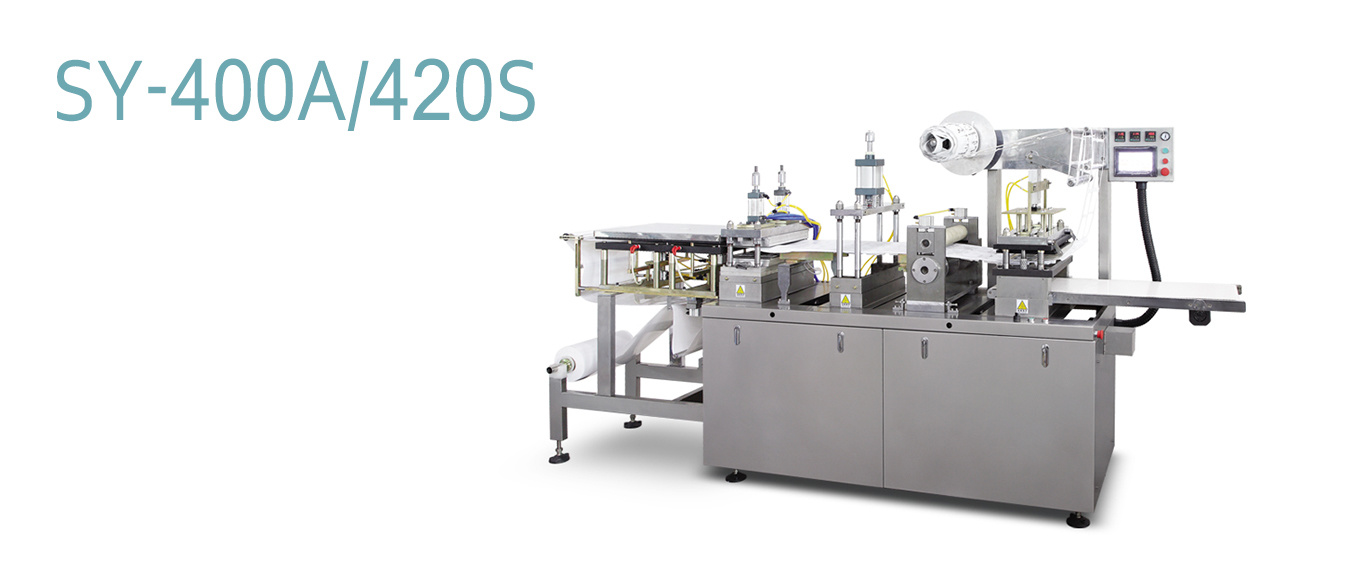

SY-400A/420S Automatic Plastic Lid Thermoforming Machine
Category:
Auxiliary Equipments
Product description
Usage:
This machine is specially designed for making different kinds of lids for plastic/paper cups, mini soup spoons, trays for medicine and etc.
Main Technical Parameters:
| Model | SY-400A | SY-420S |
| Used Material | HIPS, PS, PVC, PET | HIPS, PS, PVC, PET |
| Running Speed | 8-32(Times/min) | 8-32(Times/min) |
| Travel Range | 50-160mm | 50-160mm |
| Max.Forming Depth | 32mm(Deepening Type 52mm) | 52mm |
| Max.Forming Area | 400x160mm | 420x300mm |
| Mould Cooling | Tap Water of Circulating Water 60L/h | Tap Water of Circulating Water 60L/h |
| Total Power | 4.6KW | 10KW |
| Air Consumptions | >0.3 M/Min | >0.5 M/Min |
| Air Pressure | 0.4-0.7Mpa | 0.5-0.7Mpa |
| Overall Dimensions | 2700x830x1450mm | 3500x1000x1700mm |
| Weight | 850kg | 1200kg |
Notes: If any change of data, we will not notify further
