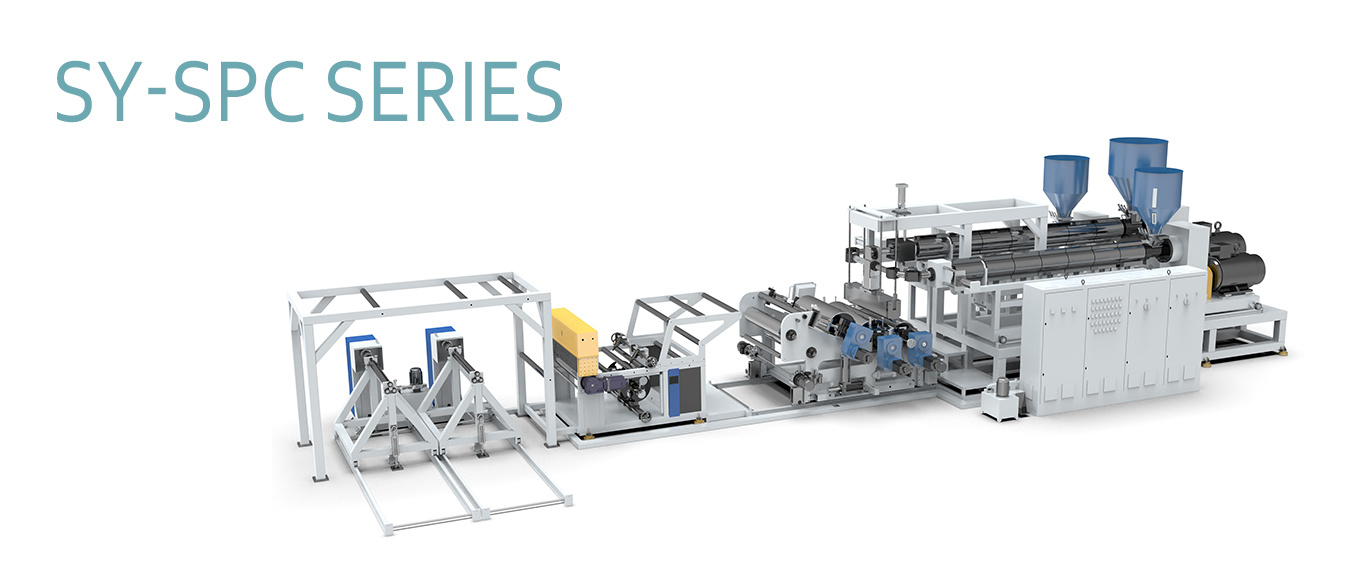

SY-SPC SERIES Diagonal Multi-Layer Plastic Sheet CO-Extruder

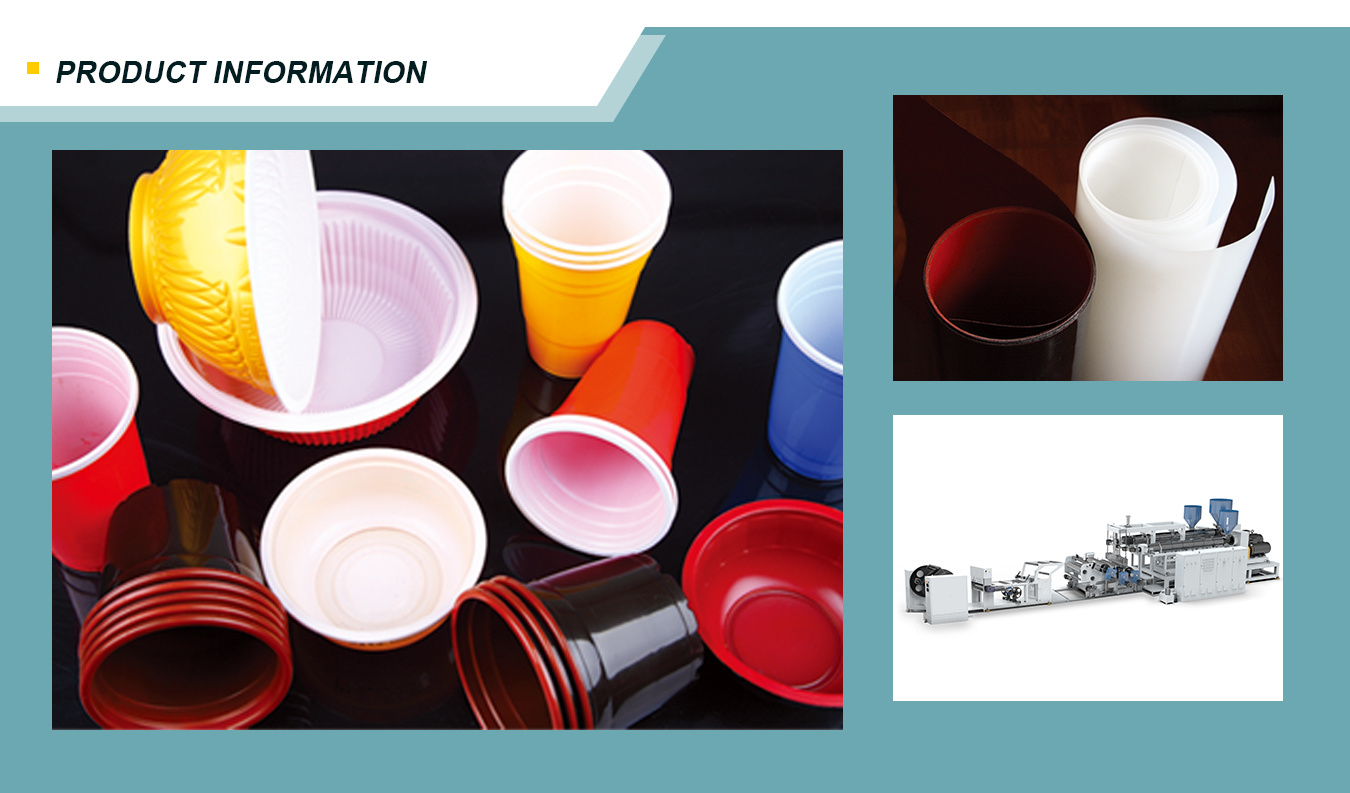

This machine mainly for producing PP/PS/PE double-layer plastic sheet,which is used for making disposable water drinking cups, ice-cream cups, yoghurt cups, lids, dishes, plates and etc.
Category:
Sheet Extrusion Line
Products
Product description
Usage：
This machine mainly for producing PP/PS/PE double-layer plastic sheet,which is used for making disposable water drinking cups, ice-cream cups, yoghurt cups, lids, dishes, plates and etc.
Major Construction Features：

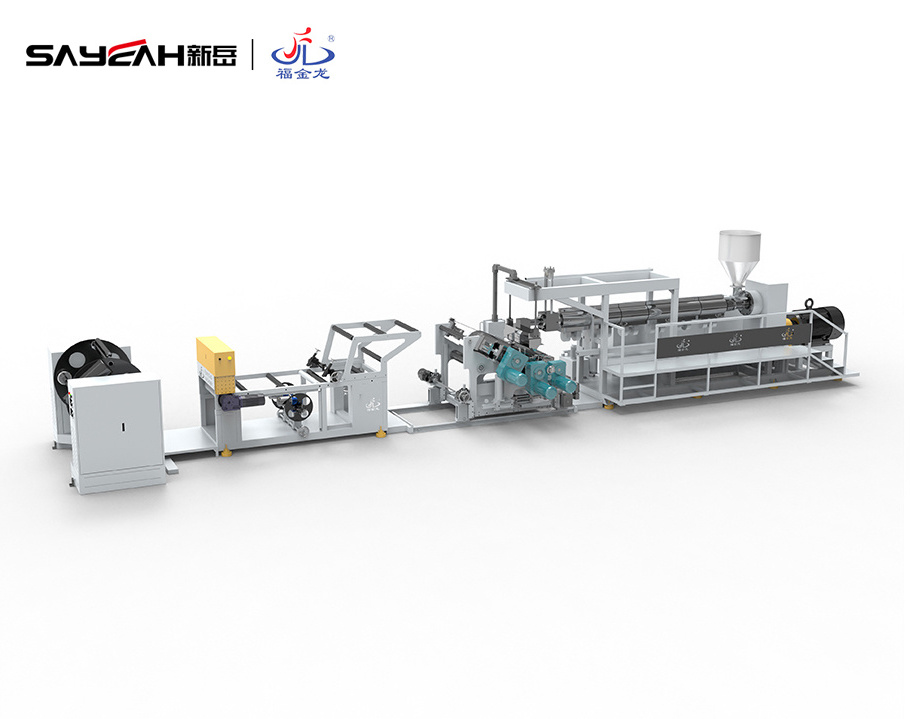

1. The sheet extrusion unit is a combination of extruder,three roll calenders,haul-off unit,winder(including waste sheet winder) and electric control cabinet.
2. The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel(38 CrMoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment.
3. The screw adopts big L/D ratio,equal plasticization and high plasticizing capability.
4. Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and improve the production efficiency.
5. The calendar,haul off unit and winder adopt integration design,fine appearance,convenient and improve the production efficiency.
6. The machine frame adopt square steel, to make sure the machine works stably in high speed. The motor is connected with gear box directly, improve production efficiency and lower energy consumption.
Note: Special specification and configuration of products can be designed according to customer’s demand.
Main Technical Parameters:
| Model | SY-SPC-100-70 | SY-SPC-110-80 | SY-SPC-120-90 | SY-SPC-120-90-65 |
| Raw Material | PP,HIPS,PE | PP,HIPS,PE | PP,HIPS,PE | PP,HIPS,PE |
| Sheet Thickness | 0.3-2mm | 0.3-2mm | 0.3-2mm | 0.3-2mm |
| Layer | 2-3(AB/ABA) | 2-3(AB/ABA) | 2-3(AB/ABA) | 4-5(ABCA/ABCBA) |
| Extrusion Capacity | 180kg/h | 250kg/h | 350kg/h | 350kg/h |
| Main/Auxiliary Screw Dia. | Φ100/70mm | Φ110/80mm | Φ120/90mm | Φ120/90/65mm |
| L/D Ratio | 33:1 | 33:1 | 33:1 | 33:1 |
| Main/Auxiliary Motor | 45/30kw | 55/37kw | 90/45kw | 90/45/22kw |
| Overall Power | 130kw | 180kw | 220kw | 270kw |
| Weight | 10T | 13T | 18T | 21T |
Notes: If any change of data, we will not notify further
