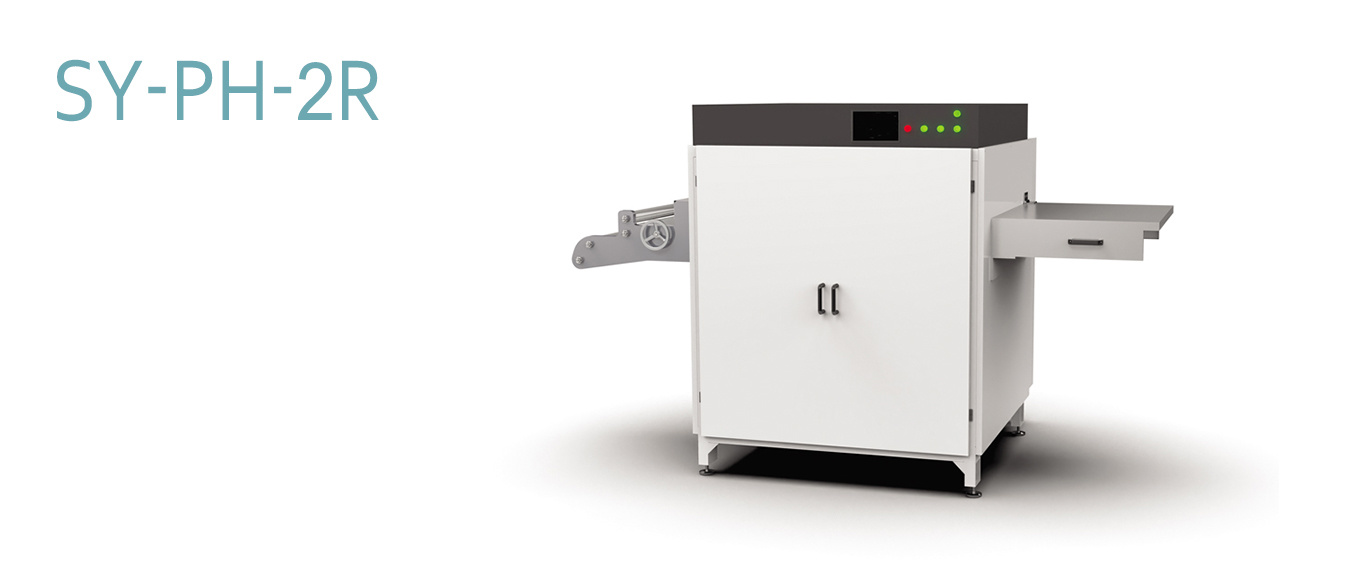

SY-PH-2R Preheating System
SY-PH-2R Preheating used for heating thermoplastic material,especially polypropylene (PP) material,with fast heating and uniform heat distribution,this outstanding independent preheating system can be applied to any thermoforming machine.
Category:
Auxiliary Equipments
Product description
Usage:
SY-PH-2R Preheating used for heating thermoplastic material,especially polypropylene (PP) material,with fast heating and uniform heat distribution,this outstanding independent preheating system can be applied to any thermoforming machine.
Main Technical Parameters:
| Max.Sheet Width | 900mm |
| The Maximum Thickness of The Sheet | 0.4-2.5mm |
| Effective Sheet Preheating Length | 3500mm |
| Roller Dia. | 510mm |
| Roller Qty | 2pcs |
| Max.Temperature Roller | 140° |
| Max.Temperature Sheet Surface | 90° |
| Max.Speed | 28m/min |
| Total Heating Power | 30kw |
| Weight | 1600kg |
Notes: If any change of data, we will not notify further
