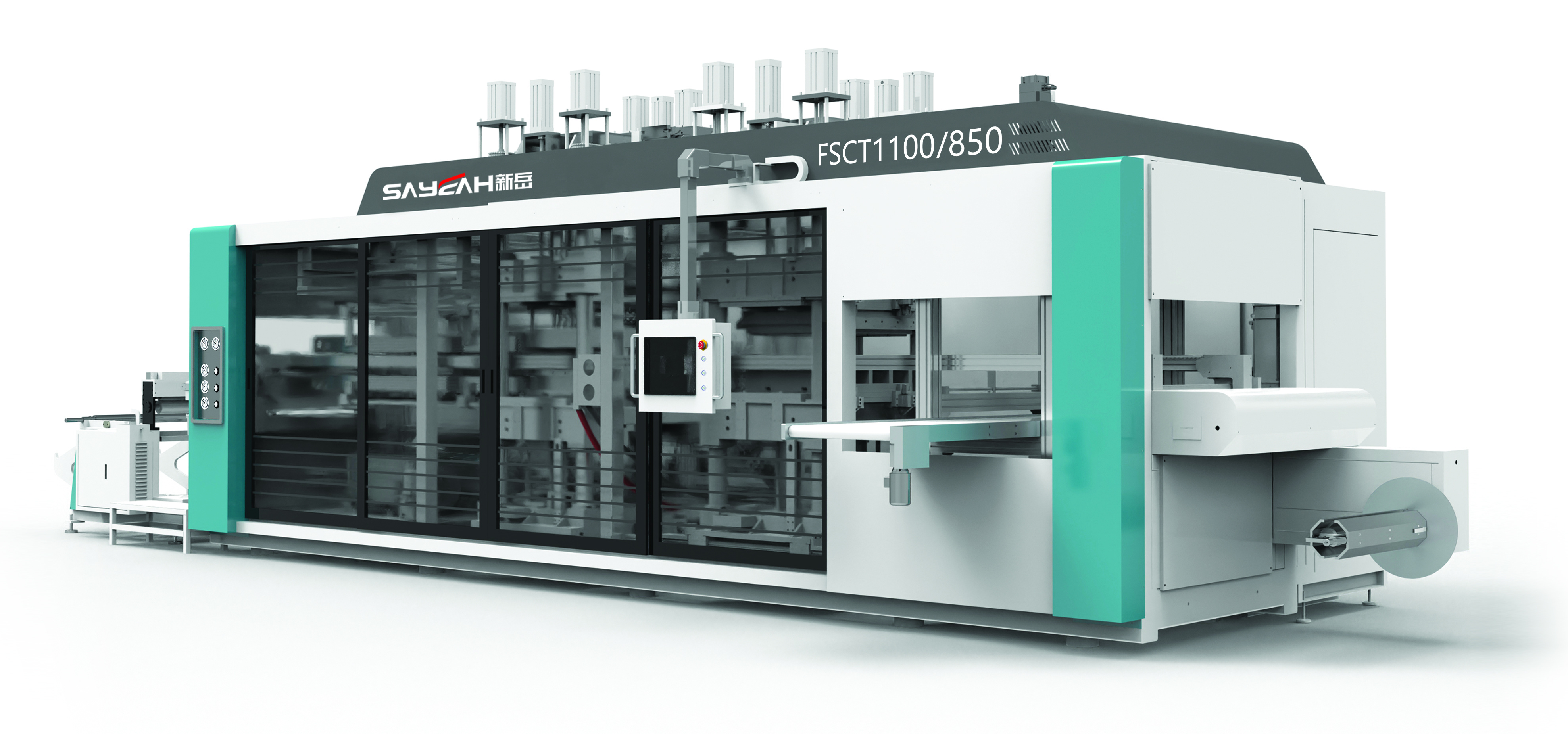

FSCT1100/850 SERIES Intelligence Pressure and Vacuum Multi-Station Thermoforming Machine
Major Construction Features:
1. European design, complete functions, suitable for diversified production lines, safe, efficient, energy-saving and hygienic
2. Unwinding station electric lifting, double roll holder, allow for single operator loading rolls up to 1T
3. Operator-friendly HMl, and the system has the function of remote connection
4. Fast and accurate temperature control system (error + 1 degree), with hot fumace detection material drop and air source low pressure protection system
5. Intelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdowm
6. lt can share molds with models of most well-known brands at home and abroad, and cooperate with exsting production lines
7. Fast mold change system, which can facilitate fast, accurate and safe mold change and reduce machine downtime
8. Under any foming Scheme, the clamping frame and plug assist function can be used alone or at the same time, greatly simplify the mold structure
9. Materials with strong shrinkage can adopt the single station in-mold-forming-cutting function to ensure the edge cutting accuracy
10. High precision forming and cutting technology to achieve the forming and cutting performance of high-speed control and low wear
11. The stacking station can be customized, which simplifles the stacking of complex parts and is convenient to meet further production needs
12. Optimize the design of electric cabinet and simplify the machine assembly and wiring installation process
Main Technical Parameters:
| Mode | FSCT1100/850-2 | FSCT1100/850-3 | FSCT1100/850-4 |
| Qty of Stations | 2 | 3 | 4 |
| Sheet Material | PPPS,PET,PVC,HIPS,PLA.OPS,EPS,C-PET,C-PLA,ABS | ||
| Forming Clamping Force | 1050KN千牛 | ||
| Punching Clamping Force | 1050KN千牛 | ||
| Max.Forming Area | 1100x850mm | ||
| Max.Pos/Neg Depth | 145/125 | ||
| Max.Plastic Sheet Width | 1130mm | ||
| Max.Sheet Roll Dia | 1000mm,1.5T | ||
| Sheet Thickness Range | 0.15-2mm | ||
| Max.No-Load Speed | 55 Cyclesy'min | ||
| Air Consumption | 6m/min,0.6-0.8Mpa | ||
| Rated Power | 290KV | 305KV | 320KV |
| Dimension(LxWxH) | 14000x2950x3500mm | 15500x2950x3500mm | 17500x2950x3500mm |
| Weight | 17T | 25T | 33T |
Notes: If any change of data, we will not notify further
|
|
|
|
The unwinder was lifted by the electricity, and the sheet roll max load weight is 1T. It can put two rolls one time for easy replacement. |
The touch screen is easy to operate, all-electric adjustments can be done on the touch screen. |
 |
 |
| Aluminum alloy can make sure the cooling effect better. The width of the chain, forward or backward was adjusted by the motor. |
It can adjust the temperature quickly and control the temperature precisely, which can save energy. |
 |
 |
| It can option for hydraulic or servo motor-driven mode and has strong power. Four-pillar can sure the guides run smoothly. |
And the Servo stretch will make the product more uniform and the mold forming more perfect. |
 |
 |
|
The automatic lubrication can prolong the life of the machine. |
The layout of the electrical cabinet is reasonable, and it is easy to maintain. It can be upgraded and maintained remotely. |
